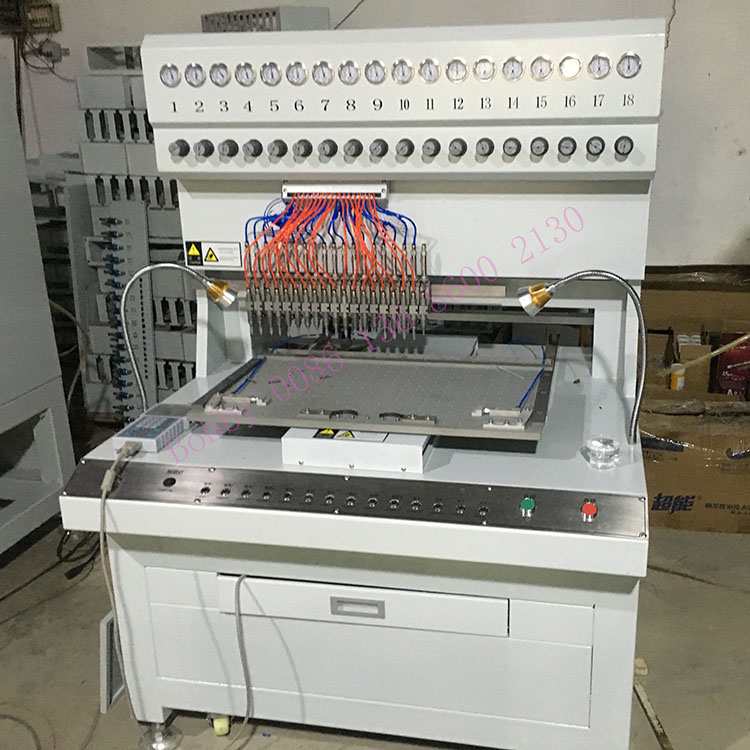

18 color microinjection machine for pvc keychain, patch
Application:
our pvc rubber dispensing machine is wildly use for different products, such as:

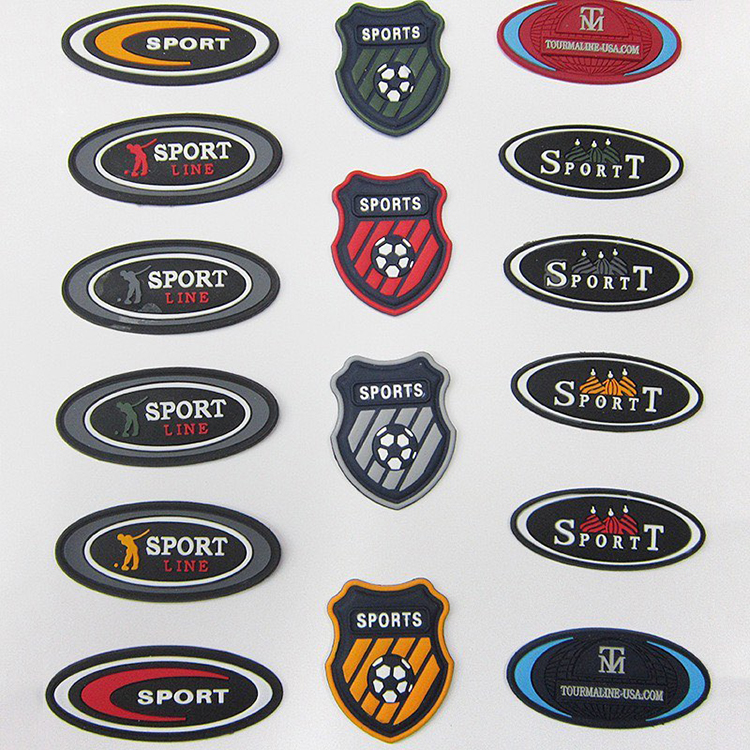

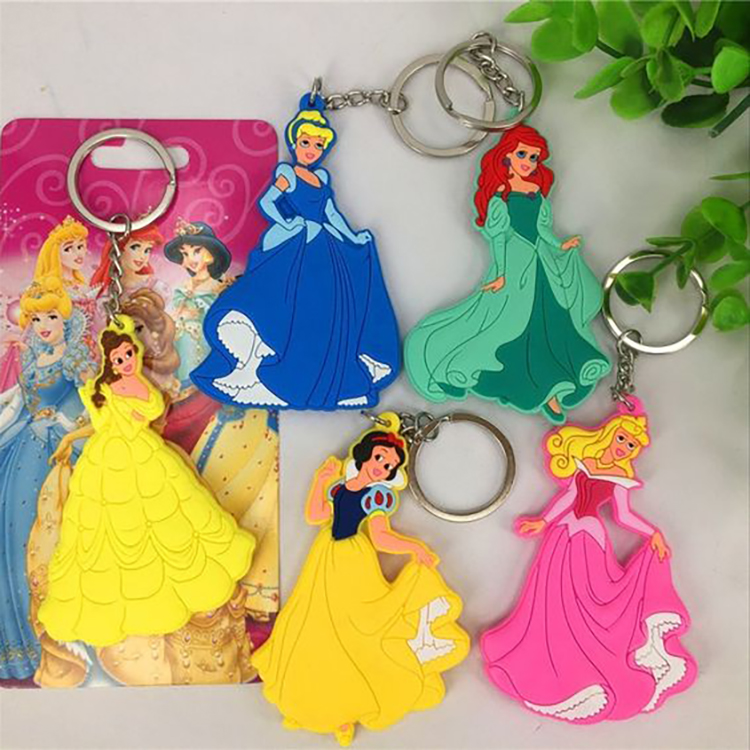

#pvc label #pvc keychain # pvc patch #pvc logo #rubber badge # pvc wristband #pvc friage magnet #pvc bar mat #pvc usb case #rubber label #rubber logo #rubber keychain ETC.
Parameters:
1.Table size: 700mm*400mm，
2.Stroke：x: 760mm，y: 420mm，z: 60mm
3.lead screw: taiwan
4.Motor: Panasonnic servo motor
5.Plastic needles
6.Material bottle: big size
7.solenoid valve: MAC
8.machine size: 1080*990*1500mm
9.machine weight: 400kg
10.with 18 shortcut
Product Features:
- Strong motion control ability.
three-axis linkage, supports the high-speed continuous interpolation of any 3-D curve with a speed of up to 999mm/s;
High speed trapezoidal acceleration and deceleration, continuous speed processing of inflection point based on speed-forward technology;
Repetitive positioning control accuracy up to 0.5 pulses
- Efficient processing control.
High-speed movement with synchronized rubber head and bilateral circular file processing, maximize the potential of the machine;
Multi-Path Shortcut button selection file, combined with the realization of complex multiple drop molding process;
- Perfect Programming Support.
Humanized Software Design Concept, easy learning and operation;
Excellent compatibility, supporting the various files(like: NC, AI, .DXF, .JPG, .BMP) generated by most mainstream design software(like: JDpaint, AutoCAD, CoralDraw). Can also support scanner scanning and teaching programming, make the rules of the graph trajectory unrestricted;
Fast parameter setting and debugging, can realize the graph immediate modification, immediately runs.

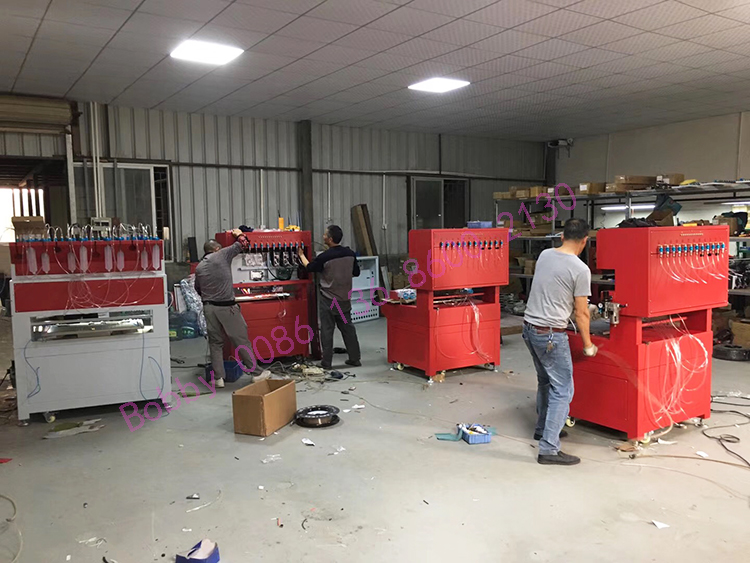

About our machines & factory:
Packing and delivery:
Customers' factory view:
