12 color pvc patch dispensing machine

pvc patch dispensing machine

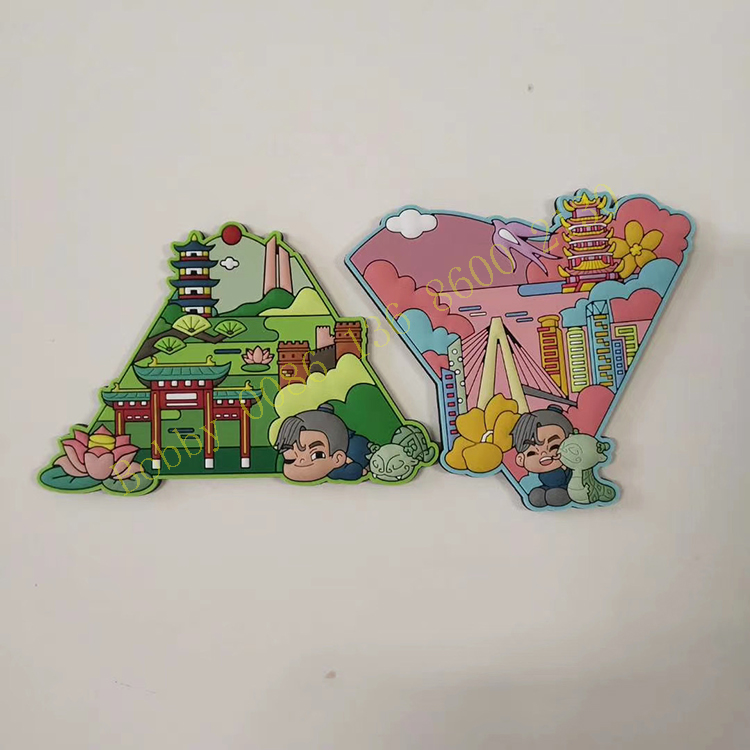

Application for our pvc patch dispensing machine:

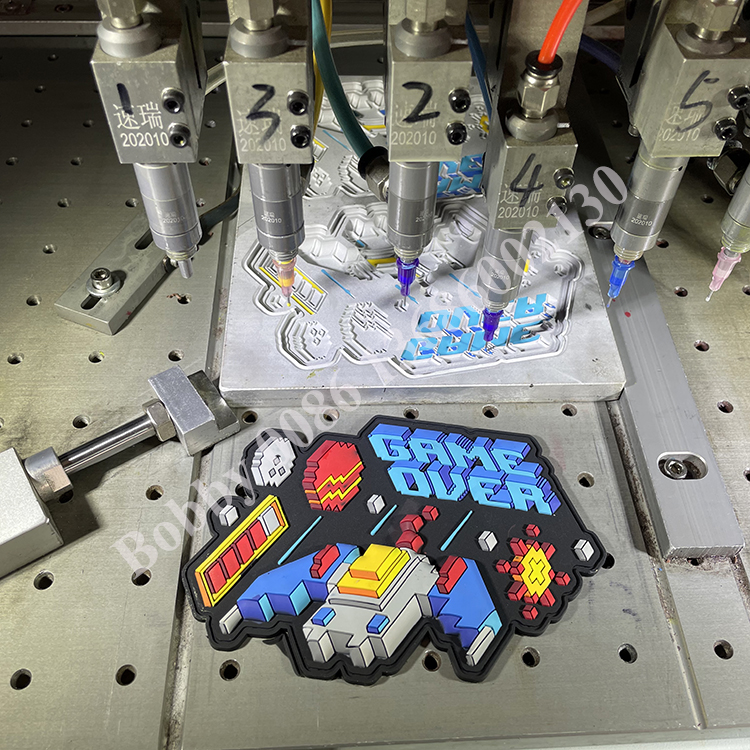

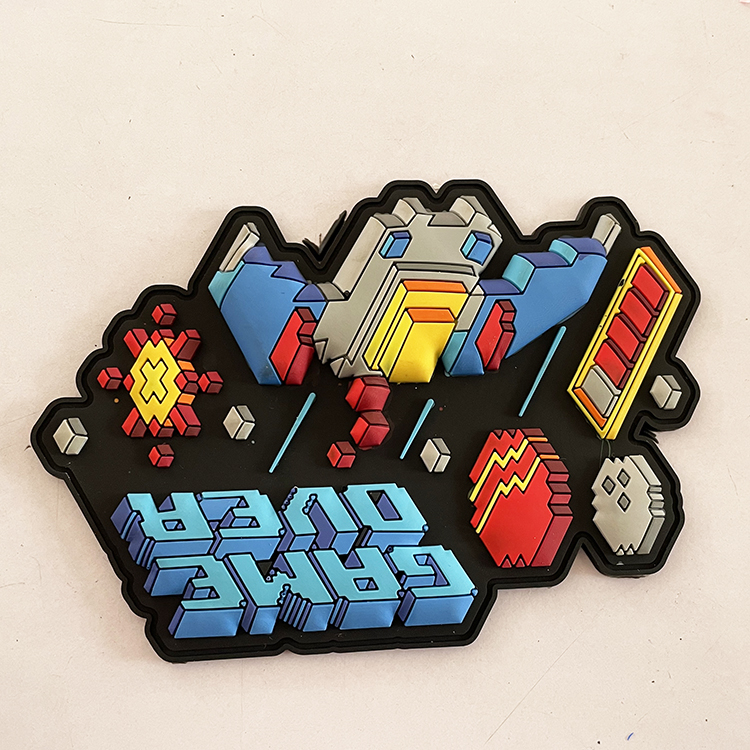

1. pvc label patch multicolor injection;

2. garment/shoes pvc silicone accessories;

3. pvc silicone Promotional Gifts;

4. Microfiber fabric/gloves silicone trademark/silicone thermal transfer;

5. liquid silicone dispensing;

6. Thermal transfer and bronzing of ready-to-wear/knit fabric/shoes;

7. pvc slippers

pvc patch dispensing machinepvc patch dispensing machinepvc patch dispensing machine

Parameters:

1.Table size: 610mm*330mm,

2.Stroke:x: 570mm,y:340mm,z:60mm

3.lead screw: taiwan

4.Motor: Panasonic servo motor

5.Plastic needles

6.Material bottle: 500ml/1.5L

7.solenoid valve: MAC

8.Voltage: 220v, 1.2kw

9.Precision: ±0.02mm

10.machine size:1028*980*1480mm

11.machine weight: 280kg



Product Features:

  1. Strong motion control ability.

three-axis linkage, supports the high-speed continuous interpolation of any 3-D curve with a speed of up to 999mm/s;

High speed trapezoidal acceleration and deceleration, continuous speed processing of inflection point based on speed-forward technology;

Repetitive positioning control accuracy up to 0.5 pulses

  1. Efficient processing control.

High-speed movement with synchronized rubber head and bilateral circular file processing, maximize the potential of the machine;

Multi-Path Shortcut button selection file, combined with the realization of complex multiple drop molding process;

  1. Perfect Programming Support.

Humanized Software Design Concept, easy learning and operation;

Excellent compatibility, supporting the various files(like: NC, AI, .DXF, .JPG, .BMP) generated by most mainstream design software(like: JDpaint, AutoCAD, CoralDraw). Can also support scanner scanning and teaching programming, make the rules of the graph trajectory unrestricted;

Fast parameter setting and debugging, can realize the graph immediate modification, immediately runs.

pvc patch dispensing machinepvc patch dispensing machine

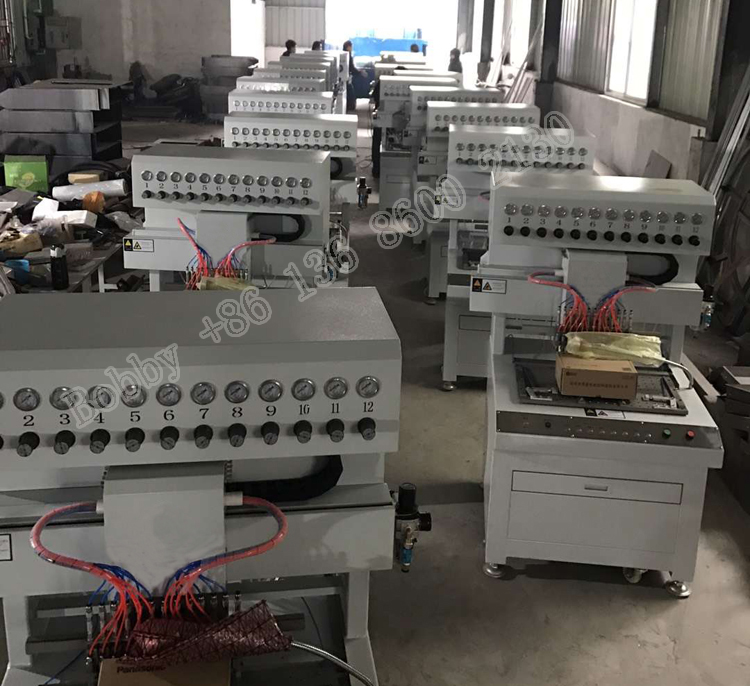

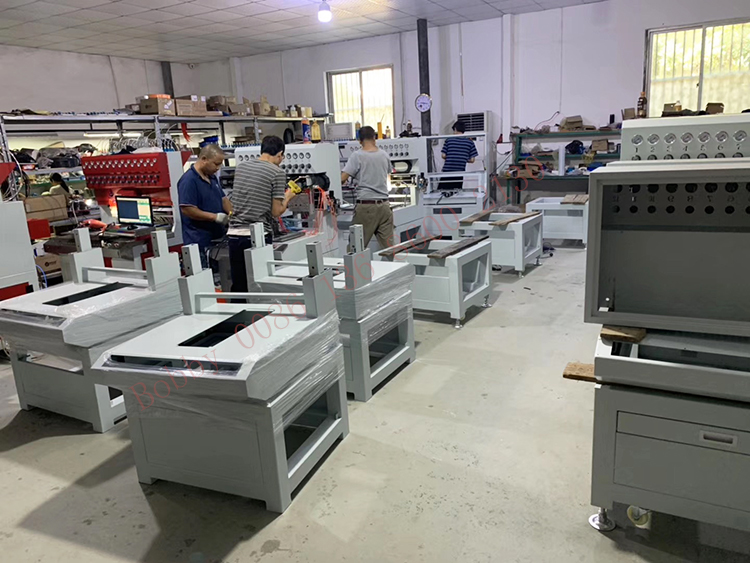

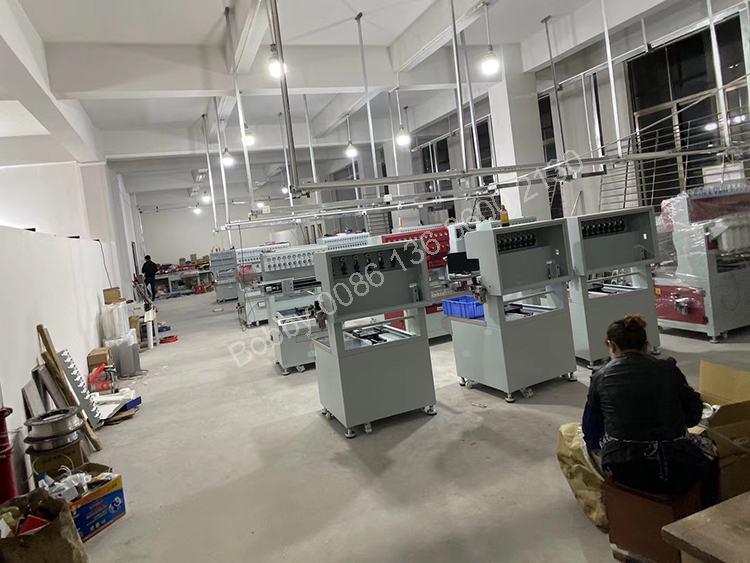

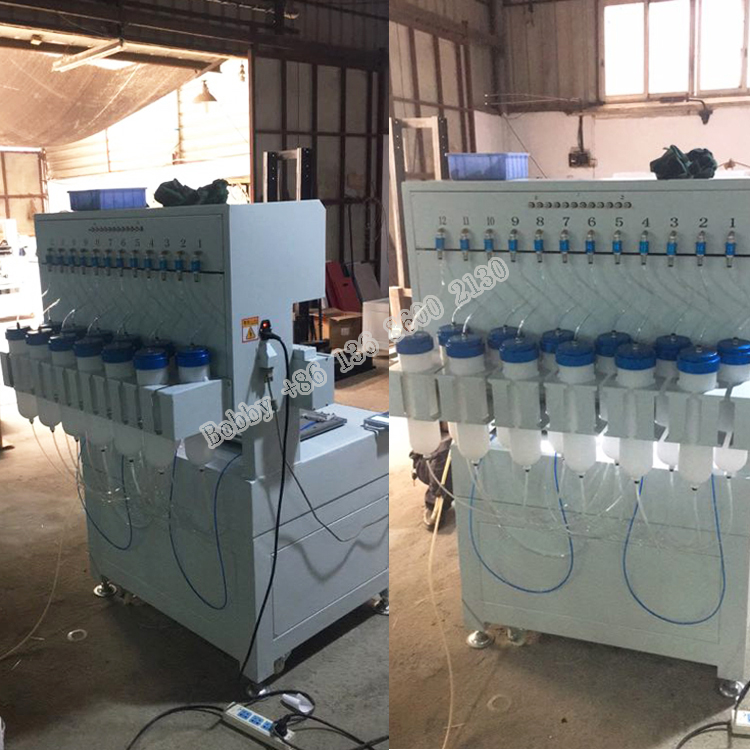

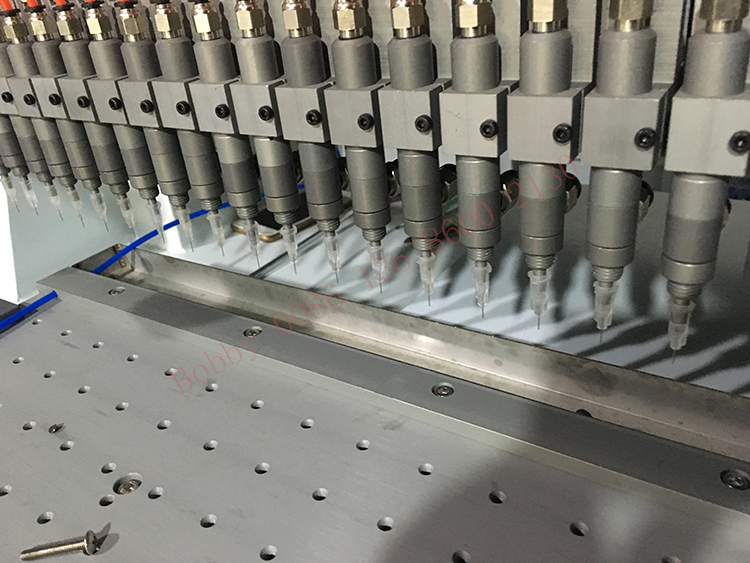

About our machines & factory:

pvc patch dispensing machinepvc patch dispensing machinepvc patch dispensing machine

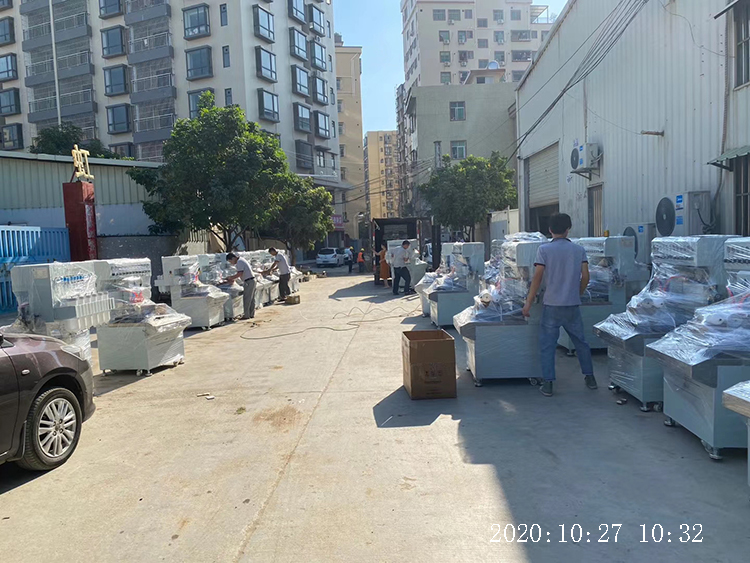

Packing and delivery:

pvc patch dispensing machinepvc patch dispensing machinepvc patch dispensing machine

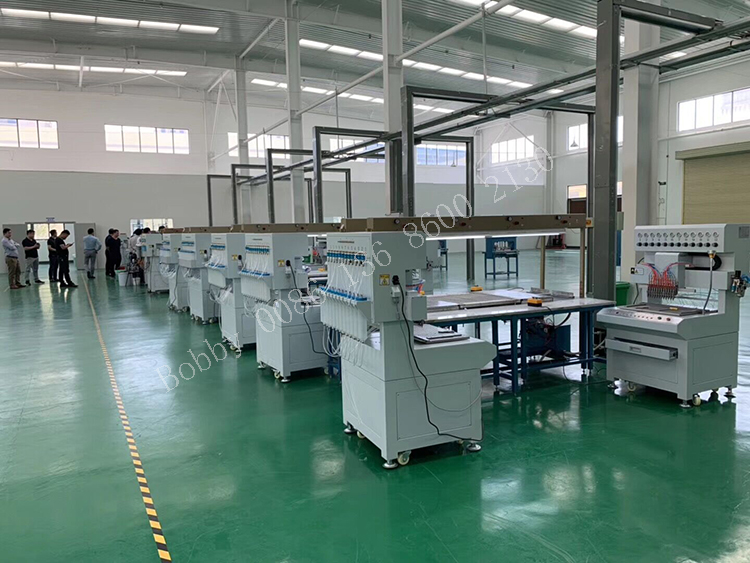

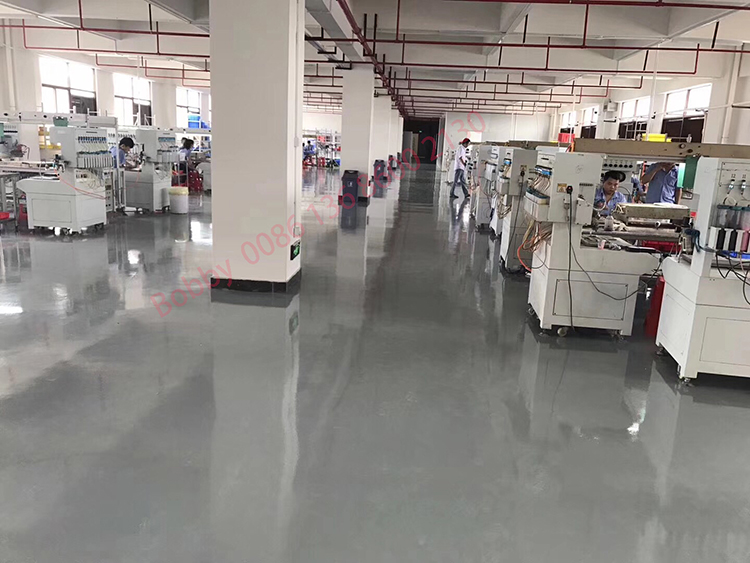

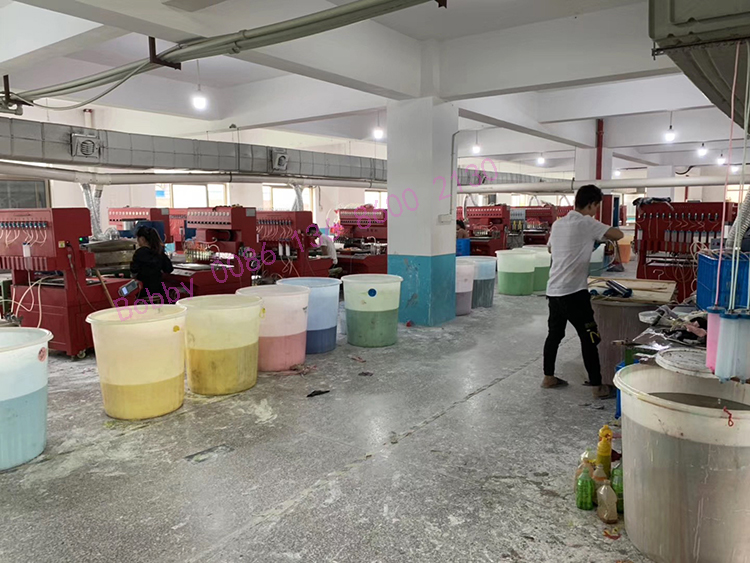

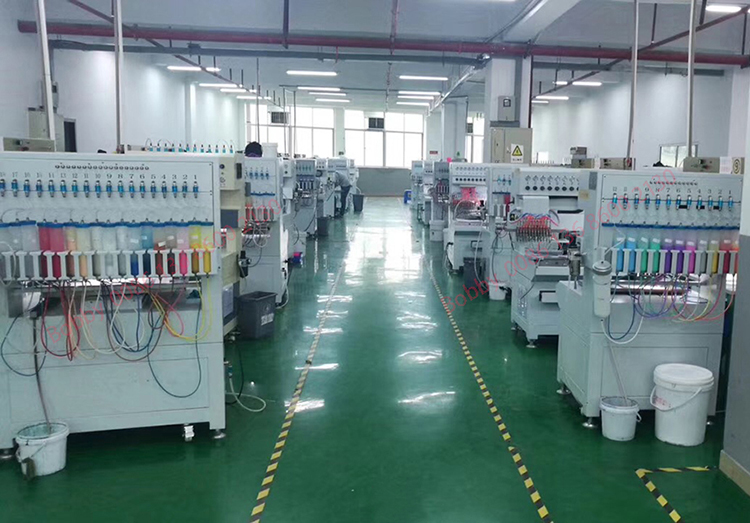

Our customers' factory view:

pvc patch dispensing machinepvc patch dispensing machinepvc patch dispensing machinepvc patch dispensing machine



machine working video:

https://www.youtube.com/watch?v=z6T0Uw-ekPs
