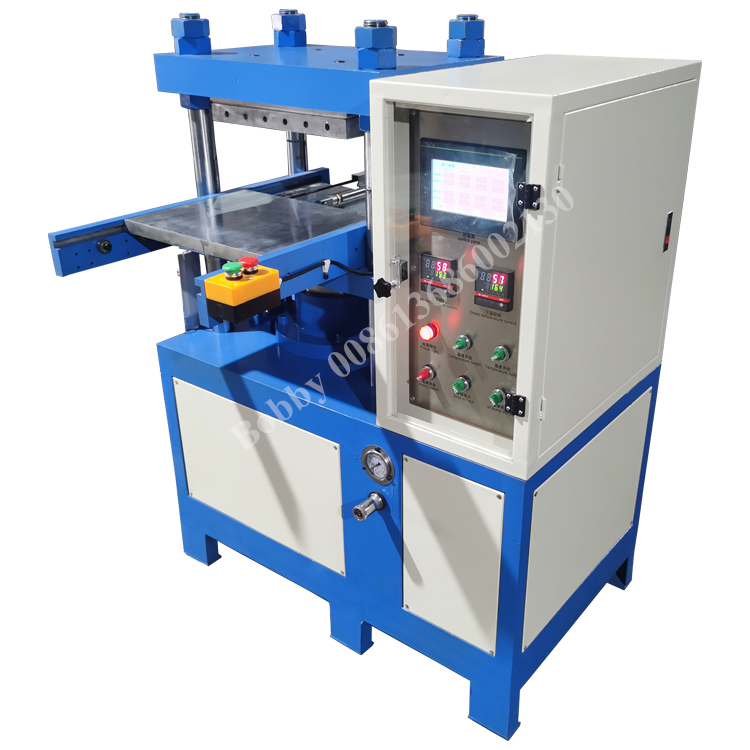

silicone molding machine for silicone label, silicone case
details about our silicone molding machine:
|
Model |
30T |
40T |
63T |
|
Temperature regulation |
At room temperature ~ 300℃ |
At room temperature ~ 300℃ |
At room temperature ~ 300℃ |
|
Heating speed |
approx 15mins |
approx 15mins |
approx 15mins |
|
Temperature precision |
Automatic/±2°C |
Automatic/±2°C |
Automatic/±2°C |
|
Machine operation |
PLC touch-screen |
PLC touch-screen |
PLC touch-screen |
|
Drive way |
hydraulic |
hydraulic |
hydraulic |
|
power supply |
AC380V±5％ 50/60HZ |
AC380V±5％ 50/60HZ |
AC380V±5％ 50/60HZ |
|
Power |
12KW |
15KW |
18KW |
|
Motor Power |
4KW |
4KW |
5.5KW |
|
Heating plate distance |
200MM |
200MM |
200MM |
|
Oil cylinder stroke |
200MM |
200MM |
200MM |
|
Movement mode of skateboard |
Automatic |
Automatic |
Automatic |
|
Speed of rise and fall |
≥15mm/s |
≥15mm/s |
≥25mm/s |
|
Hot pressing time |
0.1S~999S |
0.1S~999S |
0.1S~999S |
|
Heating plate area |
400*400MM |
400*400MM |
400*400MM |
|
Machine size |
1400*2000*1600MM |
1400*2000*1700MM |
1500*2000*1800MM |
|
Weight |
1200KG |
1350KG |
1500KG |

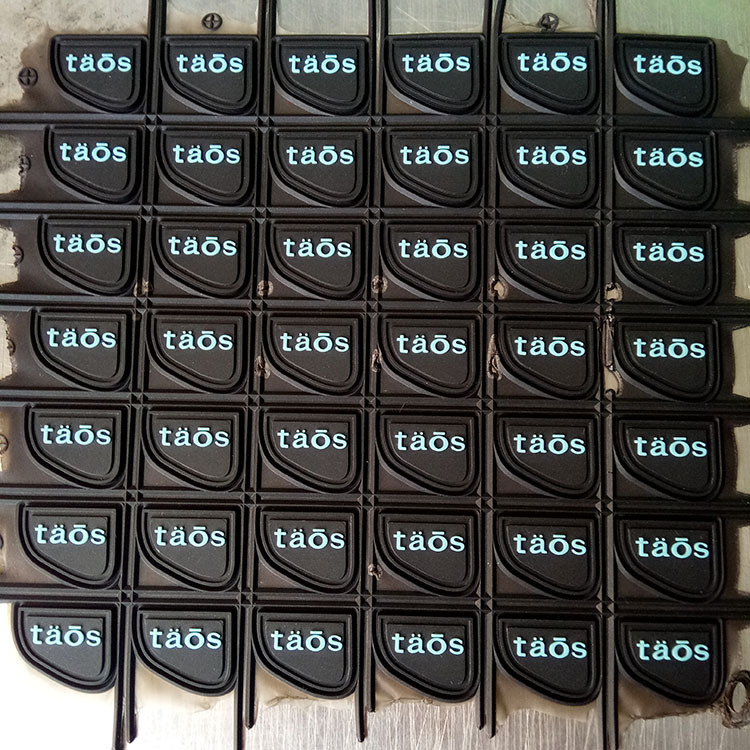

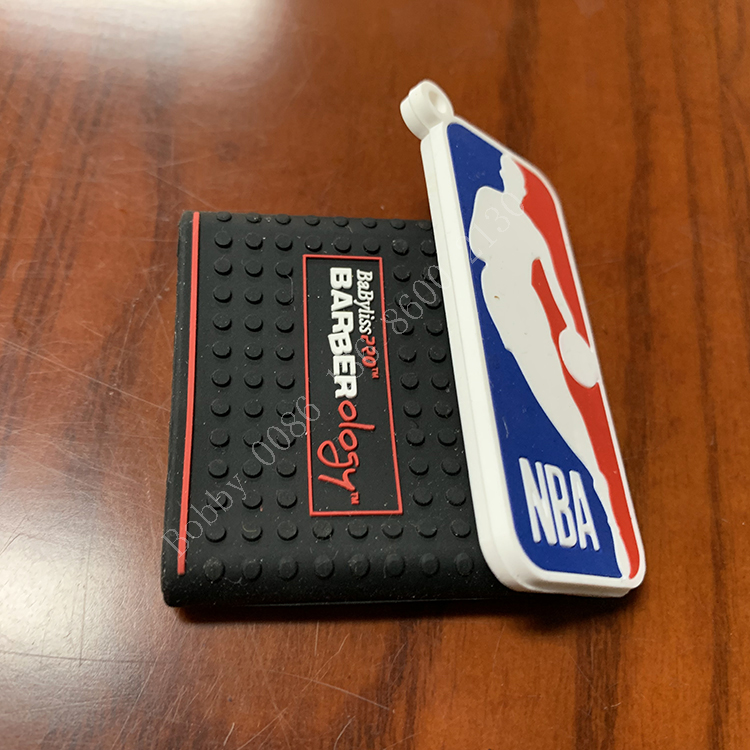

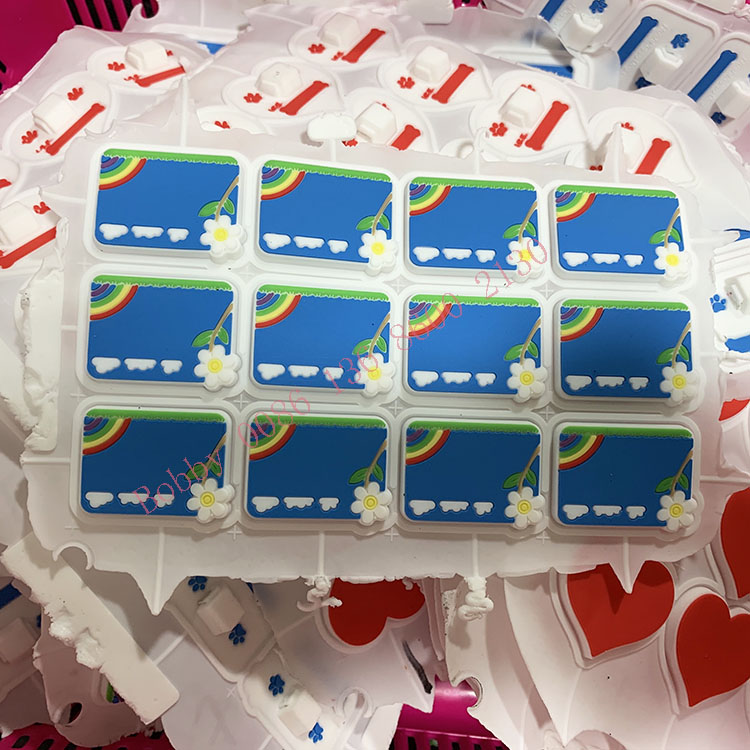

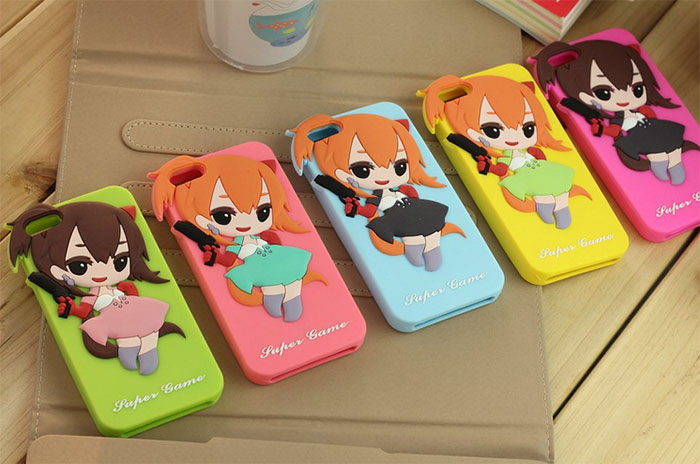

silicone molding machine(hydraulic machine) can produce different silicone products, such as:
silicone label, silicone badge, silicone case, silicone usb case, silicone mobile case, silicone key cover, etc.
video for making silicone products by our silicone molding machine:
