Application:

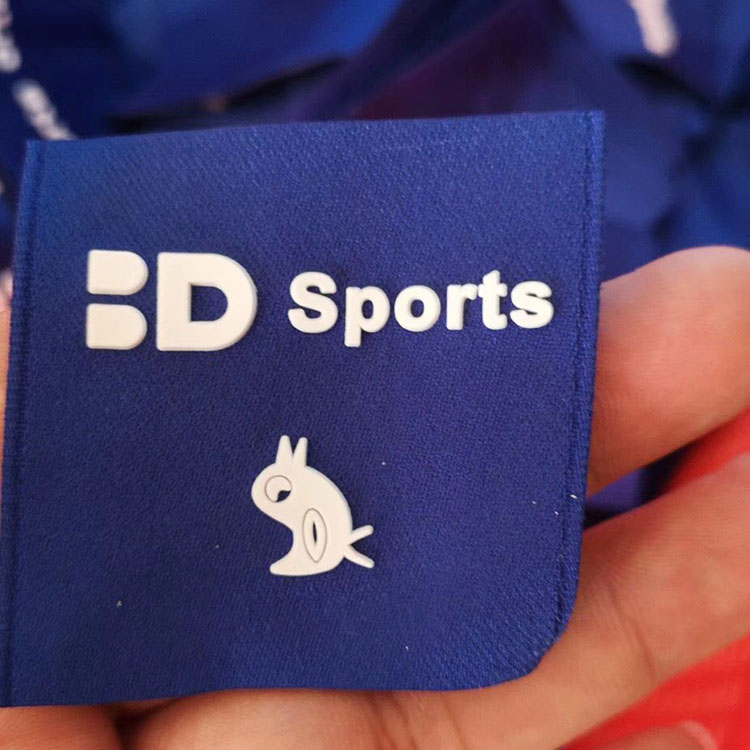

This machine suitable for silicone label embossing for all kinds of knitting, sweaters, garments, tshirt, super fiber, jeans;
Silicone/pvc glove;
Fabric, textile, artificial leather, jeans 3D embossing;
heat transfer label;
Parameters:
1.table size:300*400mm
2.double head machine
3.with heating up and bottom
4.main cylinder diameter:80mm,
5.horse:4.5hp,
6.heat power: 7.2kw,
7.voltage: 380V 3 phase
8.size:900*1300*1750mm
9.weight: 600kg
10.after packing:
weight: 700kg
size: 910*1280*1970mm
Product Features:
- full hydraulic machine, duble head working,
- Hydraulic pressure adjustable, automatic sliding table control machine forming，
- The forming time can be adjusted arbitrarily,
- Heating up and down, any temperature can be adjustable,
- Intelligent temperature control, so that the temperature set and the actual temperature difference between positive and negative 1 degrees，
- stroke limit adjuster can be adjusted according to the material and thickness of the mold,
- Automatic delay shutdown function, To better protect the oil circuit system and, to save time and power,
- Oil cylinder have stroke limit device for producing high quality products to provide better security,
About our machines:
Packing & Delivery:
