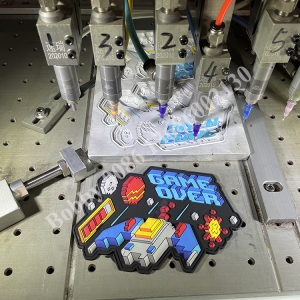

12 color pvc patch dispensing machine
12 color pvc patch dispensing machine
Application for our pvc patch dispensing machine:

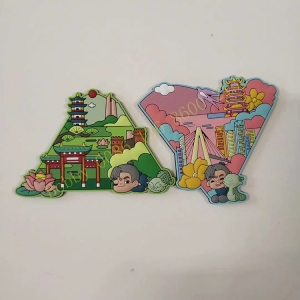

1. pvc label patch multicolor injection;
2. garment/shoes pvc silicone accessories;
3. pvc silicone Promotional Gifts;
4. Microfiber fabric/gloves silicone trademark/silicone thermal transfer;
5. liquid silicone dispensing;
6. Thermal transfer and bronzing of ready-to-wear/knit fabric/shoes;
7. pvc slippers
Parameters:
1.Table size: 610mm*330mm，
2.Stroke：x: 570mm，y：340mm，z：60mm
3.lead screw: taiwan
4.Motor: Panasonic servo motor
5.Plastic needles
6.Material bottle: 500ml/1.5L
7.solenoid valve: MAC
8.Voltage: 220v, 1.2kw
9.Precision: ±0.02mm
10.machine size:1028*980*1480mm
11.machine weight: 280kg
Product Features:
- Strong motion control ability.
three-axis linkage, supports the high-speed continuous interpolation of any 3-D curve with a speed of up to 999mm/s;
High speed trapezoidal acceleration and deceleration, continuous speed processing of inflection point based on speed-forward technology;
Repetitive positioning control accuracy up to 0.5 pulses
- Efficient processing control.
High-speed movement with synchronized rubber head and bilateral circular file processing, maximize the potential of the machine;
Multi-Path Shortcut button selection file, combined with the realization of complex multiple drop molding process;
- Perfect Programming Support.
Humanized Software Design Concept, easy learning and operation;
Excellent compatibility, supporting the various files(like: NC, AI, .DXF, .JPG, .BMP) generated by most mainstream design software(like: JDpaint, AutoCAD, CoralDraw). Can also support scanner scanning and teaching programming, make the rules of the graph trajectory unrestricted;
Fast parameter setting and debugging, can realize the graph immediate modification, immediately runs.
