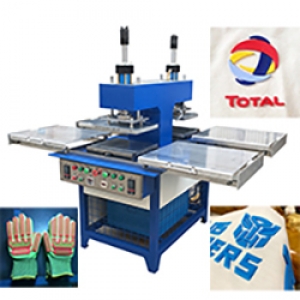

soft pvc rubber label machine with 12, 18 color

Application:

This machine suitable for silicone label embossing for all kinds of knitting, sweaters, garments, tshirt, super fiber, jeans;

Silicone/pvc glove;

Fabric, textile, artificial leather, jeans 3D embossing;

heat transfer label;

Parameters:

1.table size:300*400mm

2.double head machine

3.with heating up and bottom

4.main cylinder diameter:80mm,

5.horse:4.5hp,

6.heat power: 7.2kw,

7.voltage: 380V 3 phase

8.size:900*1300*1750mm

9.weight: 600kg

10.after packing:

   weight: 700kg

   size: 910*1280*1970mm

Product Features:

1. full hydraulic machine, duble head working,
2. Hydraulic pressure adjustable, automatic sliding table control machine forming，
3. The forming time can be adjusted arbitrarily,
4. Heating up and down, any temperature can be adjustable,
5. Intelligent temperature control, so that the temperature set and the actual temperature difference between positive and negative 1 degrees，
6. stroke limit adjuster can be adjusted according to the material and thickness of the mold,
7. Automatic delay shutdown function, To better protect the oil circuit system and, to save time and power,
8. Oil cylinder have stroke limit device for producing high quality products to provide better security,
